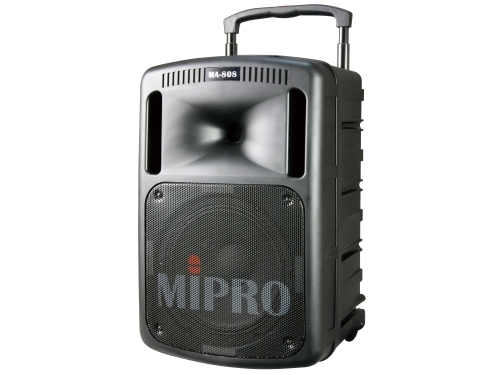

Portable PA |
Max. Power Output |
267-Watt: 190-Watt (woofer)|77-Watt (tweeter) |
Amplifier |
Class D & Class AB |
T.H.D. |
<1% |
Frequency Response |
50Hz~18kHz |
Speaker |
Tweeter: 1.5" Compression Driver
Woofer: 10" Neodyium |
Audio Inputs |
Wired: XLR×1 & 6.3mm (1/4")×1
Wireless: UP to 4 wireless microphones
Audio Player: CDM-2 or DPM-3
Line-In: Unbalanced RCA jack |
Audio Output |
Unbalanced line RCA jack |
Extension Speaker |
Speakon output |
Master Volume Control |
Manually or Wirelessly via ACT-30Hr |
Controls |
Tone, Voice Priority & Echo on wireless mics |
Storage |
2 handheld or bodypack transmitters |
Installation |
Speaker stand, flat surface or retractable handle & wheels |
Power Supply |
AC: Built-in 100-240V AC switching power supply
DC & Battery: 24~32DC, 12V/4.5AH rechargeable gel cell battery |
Charge Time |
Up to 8 hours (automatic charging management) |
Stand-by Time |
Up to 6 hours |
Battery Indicator |
4-level Indicator (25/50/75/100%) |
Color |
Black, White |
Dimensions |
360(W)×560(H)×350(D)mm / 14.2(W)x22(H)x13.8(D)" |
Weight |
Approx. 20.5kg / 45lbs (batteries included) |
|
Wireless System (optional) |
Receiver |
MRM-70 or MRM-72 |
Max. Receiver |
Up to 4 |
Interlinking Transmitter |
MTM-90 |
Installation |
Plug-in Module |
Antenna |
Built-in |
|
Audio Player (optional) |
Model |
CDM-2 or DPM-3 |
Installation |
Plug-in Module |
Patents & Approvals |
Patented. Telecom and safety regulations approved. |
Notes |
Refer to actual product in the event of product discrepancy.
Frequency range, max. deviation, RF output power and spurious emission to comply regulations of different countries. |
|
