ACT-30H Handheld Transmitter

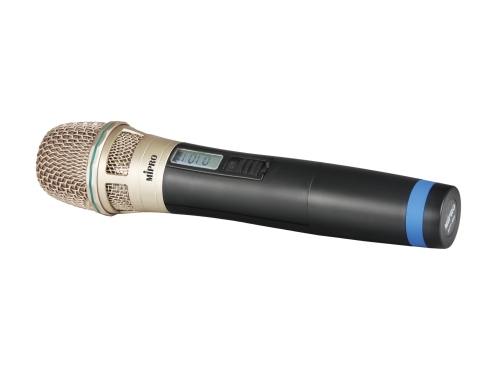

Mipro ACT-30H Handheld Transmitter

Mipro ACT-30H Handheld Transmitter







Spec Sheet

User Guide

Print

mail icon Send Mail



  • Key Features
  • Specifications
  • Receivers
  • Accessories
  • Extremely rugged, ergonomically designed housing.
  • The unique flat top multi-layered steel grille protects the capsule against impact, rolling, pop noise and ensures sound clarity.
  • The unique flat top multi-layered steel grille for condenser capsules and round top for dynamic capsules protect the capsule against impact, rolling and pop noise. The upper grille is able to be detached easily for cleaning and hygiene practices.
  • Premium true condenser microphone capsule provides high fidelity, wide frequency response, high dynamic range, rapid transient response, clarity and accurate sound reproduction.
  • Proprietary lockable silent on/off switch to avoid accidental power-off during performance.
  • Impact-resistant battery compartment holds 2 AA batteries.
  • Interchangeable colored rings for microphone channel identification on stage.
  • LCD displays group, channel, battery level & error message codes.
  • Low spurious PLL-synthesized technology enhances frequency stability and reliability. Patented “Built-in” antenna design.
  • World’s first ACT™ function provides precise and rapid frequency sync to the transmitters.
Built-in Volume Control N/A
Housing Rugged Plastic
Oscillation Mode PLL Synthesized
Frequency Range UHF 480~934MHz
Bandwidth 24MHz
Channel Set-Up ACT Sync
RF Output Power 10~30mW (country dependent)
Spurious Emission <-55dBc
Max. Input Level 140dB SPL
Display LCD displays group, channel, battery status & error codes.
Battery 2 AA alkaline
Dimensions 50(Ø)×233(L)mm / 2.0(Ø)x9.2(L)"
Weight Approx. 246g / 8.68oz (excluding batteries)
Patents & Approvals Patented. Telecom and safety regulations approved.
Notes Refer to actual product in the event of product discrepancy.
Frequency range and maximum deviation comply with the regulations of different countries.


Mipro ACT-311 Single-Channel Diversity Receiver Mipro ACT-312 Dual-Channel Diversity Receiver Mipro MA-202
ACT-311 ACT-312 MA-202


Mipro MU-89 True Condenser Capsule Mipro MU-79 Condenser Capsule Mipro MU-59 Professional Dynamic Capsule Mipro MS-20 Mipro MD-20
MU-89 MU-79 MU-59 MS-20 MD-20
Mipro RH-77a Multi-colored ID rings
RH-77a
