ACT-30T Bodypack Transmitter

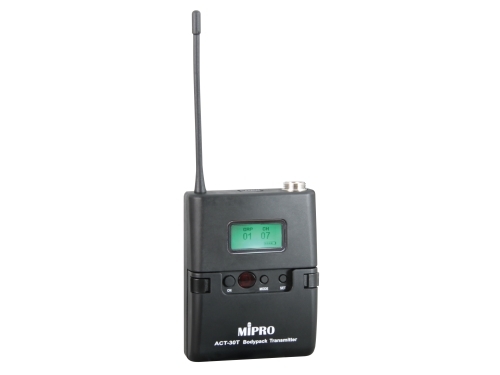

Mipro ACT-30T Bodypack Transmitter
Mipro ACT-30T Bodypack Transmitter


Spec Sheet
User Guide
mail icon Send Mail
  • Key Features
  • Specifications
  • Receivers
  • Accessories
  • Miniature, compact design.
  • Top features mute switch, mini-XLR connector and antenna.
  • Backlit LCD displays various parameters and indicators.
  • Unique battery cover design provides easy access to operational controls and protects against accidental change of settings.
  • Connector for optional MJ-70 remote mute switch cable.
  • Low spurious PLL-synthesized technology enhances frequency stability and reliability. One-touch ACT syncs the transmitter and receiver frequency automatically.
  • Selectable impedance for microphone or guitar/line inputs.
    4-pin mini XLR connector is compatible with all MIPRO lavalier, headworn microphones and instrument cable.
  • Highly efficient power consumption circuitry ensures long operating hours from 2 AA batteries.
  • Adjustable belt clip allows wearing transmitter in up or down position.
Housing Rugged Plastic
Frequency Range UHF 480~934MHz
Bandwidth 24MHz
Oscillation Mode PLL Synthesized
Channel Set-Up ACT Sync
LCD Display LCD displays working band-code, group, channel, frequency, AF input gain, RF output power, mute & lock status, battery status and error codes.
RF Output Power 10mW/50mW (switchable)
Spurious Emission <-55dBc
Max. Input Level 0dBV
Mute Connector Optional MJ-70 remote mute switch
Battery 2 AA alkaline
Dimensions 63(W)×82(H)x22(D)mm / 2.5(W)x3.2(H)x0.9(D)"
Weight Approx. 81g / 2.9oz (excluding batteries)
Patents & Approvals Patented. Telecom and safety regulations approved.
Notes Refer to actual product in the event of product discrepancy.
Frequency range and maximum deviation comply with the regulations of different countries.
