MM-107 Hypercardioid Dynamic Microphone


Mipro MM-107 Hypercardioid Dynamic Microphone

Mipro MM-107 Hypercardioid Dynamic Microphone







User Guide

Print

mail icon Send Mail



  • Key Features
  • Specifications
  • Related
  • Diagrams
  • Uniform hypercardioid pickup patter.
  • Focuses on the main sound source and minimizes background noise.
  • Maximum gain-before-feedback.
  • No phantom powered required.

Capsule Dynamic
Housing Die-cast Zinc Alloy
Directionality Hypercardioid
Sensitivity -54dBV/Pa (0dB=1V Open-circuit voltage)
Frequency Response 50Hz~16kHz
Output Impedance 400Ω±30%
Dimensions 51(Ø)x178(L)mm / 2.0(Ø)x7.0(L)"
Weight Approx. 235g / 8.3oz
Patents & Approvals Patented. Telecom and safety regulations approved.
Notes Refer to actual product in the event of product discrepancy.
Frequency range and maximum deviation comply with the regulations of different countries.

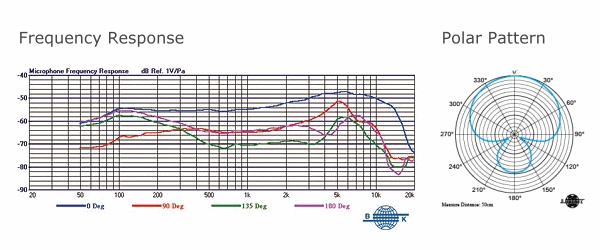

Mipro MM-107 Hypercardioid Dynamic Microphone diagrams
