MTM-90 Wireless Interlinking Transmitter

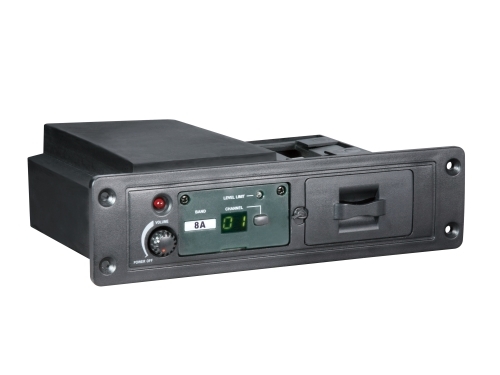

Mipro MTM-90 Interlinking Module

Mipro MTG-100Ra Digital Portable Receiver







Spec Sheet

User Guide

Application Application

Print

mail icon Send Mail



  • Key Features
  • Specifications
  • Related
  • 16 auto-scanable UHF channels and numeric LED display
  • High/Low power output selectable
  • Modularized design allows easy installation, operation & trouble-free maintenance
  • Fits MA-708 & MA-808 wireless portable PA systems
  • Ideal for parade routes, farmers markets, outdoor athletic event or religious services or any where you need to add more systems wirelessly without the mess of bulky speaker cables

Frequency Range 480~934MHz
Oscillation Mode PLL Synthesized
Bandwidth 24MHz
RF Output Power 10mW / 100mW(switchable)
Spurious Emissions <-45dBm
Dimensions 220(W)X57(H)X190(D)mm / 8.6(W)X2.2(H)X7.5(D)"
Weight Approx. 410g / 14.5oz


Mipro MA-708 Portable Wireless PA System Mipro MA-808 Portable Wireless PA System Mipro MRM-70-R receiver Module Mipro MT-90 Wireless Interlinking Transmitter Module
MA-708 MA-808 MRM-70-R MT-90
