ACT-100A Dual-Channel Diversity Receiver

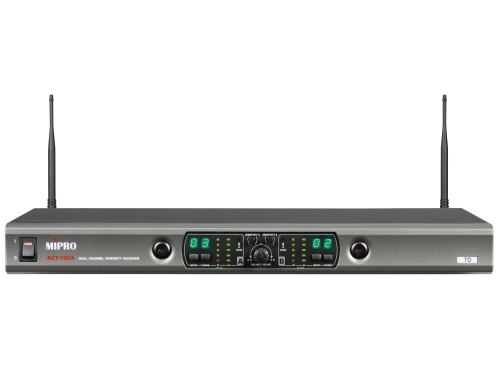

Mipro ACT-100A Dual-Channel Diversity Receiver

Mipro ACT-100A Dual-Channel Diversity Receiver Mipro ACT-100A Dual-Channel Diversity Receiver layout




  zoom in


User Guide

Print

mail icon Send Mail



  • Key Features
  • Specifications
  • Transmitters
  • Accessories
  • EIA standard 1U rack-mountable metal receiver equipped with clear LED control panel. Receiver provides bias for booster where MIPRO antenna systems can be added for extended receiving range and stability.
  • Sensitivity adjustor to manage the sensitivity levels and interferences.
  • Industry’s only RF interference warning indicator with adjustor.
  • Enhanced RF filter and circuitry for improved anti-interference characteristics and increased compatible systems.
  • 10 groups and a total of 102 selectable frequencies per band. One-touch Autoscan for a clear, interference-free frequency. World’s first ACT™ function provides precise and rapid frequency sync to the transmitters.
  • Advanced diversity receiving circuit for the best elimination of signal dropout. “PiloTone & NoiseLock” dual-squelch circuits prevent noise interference.
  • Three switchable output levels. Output level is accurately pre-adjusted to equal to the microphone capsule sensitivity and ensures optimal performance and no distortion during loud singing performance.
  • A balanced volume control enables users to adjust the mixed output volume of two wireless microphones.
  • Increased interference-free channels and ideal for large, multiple KTV rooms.

Channel Dual
Chassis EIA-Standard 19" 1U
Receiving Mode Diversity
Frequency Range UHF 480~934MHz
Antenna Rear Panel. Detachable.
Preset Channels 102 preset channels. Group 1~6: 8 compatible channels in each group.
Group 7~8: 12 compatible channels in each group.
Group 9~10: 15 compatible channels in each group.
Oscillation Mode PLL Synthesized, Frequency Stability?±0.005% (-10~+60℃)
Sensitivity 10dBµV, at S/N>80dB
S/N Ratio >106dB(A)
T.H.D. <0.5% @ 1kHz
Frequency Response 50Hz~18kHz
Squelch "PiloTone & NoiseLock" dual-squelch circuit.
Audio Output Adjustment Output level accurately pre-adjusted to equal to the microphone capsule sensitivity.
Maximum Output Level 3-Level Switch: +10dB / 0dB / -6dB
Power Supply External AC Adapter, 12~15V DC, 1A
Dimensions 420(W)×44(H)×240(D)mm / 16.5(W)x1.7(H)x8(D)"
Weight Approx. 1.7kg / 3.7lbs
Notes Refer to actual product in the event of product discrepancy.
Frequency range and maximum deviation comply with the regulations of different countries.


Mipro ACT-30H Handheld Transmitter Mipro ACT-30T Bodypack Transmitter
ACT-30H ACT-30T


Mipro AD-707a UHF Wideband 4-Channel Antenna Divider Mipro AT-70 UHF Ground Plane Antenna Mipro AT-70W Wideband Transmitting & Receiving Omni-directional Antenna Mipro AT-90W Wideband Transmitting & Receiving Log Antenna Mipro AT-100 Wideband Circularly Polarized Antenna
AD-707a AT-70 AT-70W AT-90W AT-100
Mipro FB-10 Mipro FB-30
FB-10 FB-30
