AT-70 UHF Ground Plane Antenna

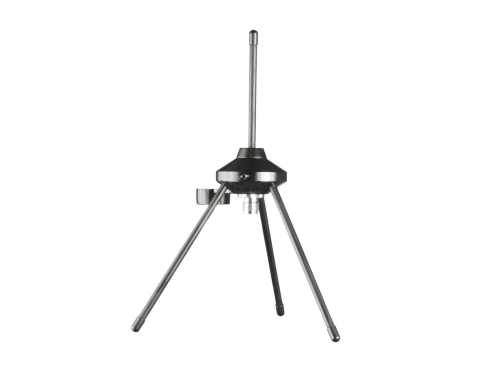

Mipro AT-70 UHF Ground Plane Antenna

Mipro AT-70 UHF Ground Plane Antenna







spec sheet Spec Sheet

User Guide

Print

mail icon Send Mail



  • Key Features
  • Specifications
  • Related
  • Accessories

AT-70 is an UHF antenna that stabilizes signal receiving and prevents impedance interference from nearby objects because of its vertical 1/4 wave antenna is surround by horizontal antennas at a 45° degree, causing a 1/2 wave dipole antenna effect. Thus AT-70 has higher positive gain than a 1/4 wave single rod antenna and smoother impedance within 620~960 MHz band. Therefore, the length of the antenna does not need to be adjusted while receiving. The antenna is able to reduce interference by filtering signals outside the range. 50 O impedance for matching with regular 50 O impedance antenna cables. It is suggested to be installed at the central location of a hall, on the wall, inverted on a ceiling, or mounted on a tripod (MS-30).


Frequency Range UHF 620~960MHz
Impedance 50Ω
Connector TNC male
Dimensions 165(H)x150(Ø)mm / 6.5(H)x5.9(Ø)"
Weight 142g / 5.0oz

Mipro MS-30 Tripod
MS-30
