ACT-20T Ultra-Miniature Transmitter

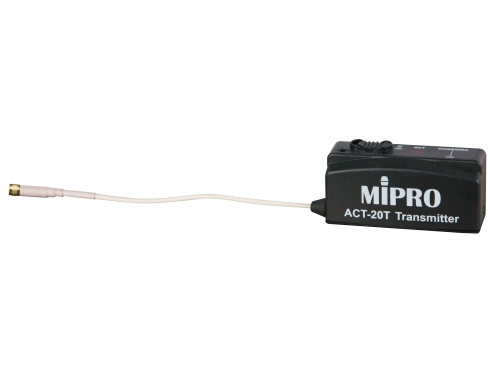

Mipro ACT-20T Ultra Miniature Transmitter

Mipro ACT-20T Ultra Miniature Transmitter Mipro ACT-20T Ultra Miniature Transmitter







Spec Sheet

Print

mail icon Send Mail



  • Key Features
  • Specifications
  • Receivers
  • Accessories

MIPRO introduces ACT-20T, a compact, miniature transmitter. It becomes a complete freedom of mobility when connected with a headworn microphone with no bodypack and no cable. This true wireless solution offers a hands-free operation without cable entanglement and poor connection problems.

The ACT-20T utilizes PLL synthesized technology for increased RF stability and packed in a lightweight, miniature housing so transmitter can rest comfortably and secure behind the head of the performer for an unobtrusive view.

Featuring built-in rechargeable lithium battery with a quick charger for extended battery hours and patented ACT sync enables fast and easy transmitter setup from any MIPRO receivers.

ACT-20T can be connected to a MU-23d or MU-210d headworn microphone with detachable (screw-lock type) microphone boom for a truly wireless audio transmission solution.

ACT-20T is easy to use and ideal for education, theater, aerobics/fitness and houses of worship applications.

Frequency Range UHF 480~934MHz
Bandwidth 24MHz
Oscillation Mode PLL Synthesized
Channel Set-Up ACT Sync
RF Output Power 10~30mW (country dependent)
Spurious <-55dBc
Max. Input Level 0dBV
Battery Built-in Rechargeable Lithium
Operating Time Up to 6 hours
Dimensions 57(W)×28(H)x20(D)mm / 2.2(W)x1.1(H)x0.8(D)"
Weight Approx. 38g / 1.3oz, battery included
Patents & Approvals Patented. Telecom and safety regulations approved.
Notes Refer to actual product in the event of product discrepancy.
Frequency range and maximum deviation comply with the regulations of different countries.


Mipro ACT-717 Single-Channel True Diversity Receiver Mipro ACT-51 Single-Channel Diversity Receiver Mipro ACT-515 Single-Channel True Diversity Mipro ACT-311 Single-Channel Diversity Receiver
ACT-717 ACT-51 ACT-515 ACT-311


Mipro MU-210d Uni-directional Cardioid Headworn Microphone Mipro MU-23d Omni-directional Headworn Microphone
MU-210d MU-23d
