MTS-100 Digital Rackmountable Stationary Transmitter

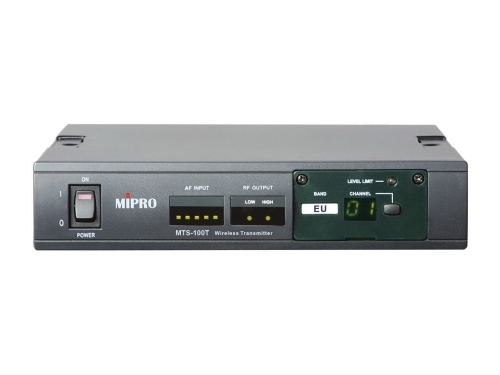

Mipro MTS-100 Digital Rackmountable Stationary Transmitter

Mipro MTS-100 Digital Rackmountable Stationary Transmitter Mipro MTG-100T Digital Portable Transmitter back view




  zoom in


Spec Sheet

User Guide

Application Application

Print

mail icon Send Mail



  • Key Features
  • Specifications
  • Receivers
  • Accessories
  • Modularized design for easy set-up, operation and maintenance.
  • Preset with 16 selectable channels.
  • Bright LED channel display.
  • Direct output for low level or switch to wideband amplifier for high level output.
  • Selectable input audio signal level for optimal modulation index.
  • Audio input and RF output LED indicators.
  • 48V phantom power for condenser microphones.

Frequency Range CEPT/EU: 863~865 MHz / USA: 926~928 MHz
Oscillation Mode PLL Synthesized
Switching Bandwidth 2MHz
Preset Frequencies 16
Modulation 2 FSK
Stability ±0.005%, 0℃~+60℃
Channel Grid 125kHz
RF Output Power <10mW (Low), <50mW (High)
Antenna TNC x1, 50Ω
Spurious <250nW @>1GHz
Transmission Range >100 meters (High setting)
Frequency Response 50Hz~10kHz
Max AF Input Level <15V RMS (Line In)
Microphone Input XLR & 6.3mmØ(Combo)
Input Sensitivity Switch Mic or Line-Level
Input Sensitivity Adjustment Adjustable VR
Phantom Power Switch ON / OFF
Panel Display Audio Meter, Audio Limiter, RF Hi/Low Power indicator. LED channels
Power Supply 12~15V DC
Dimensions 210(W)x44(H)x206(D)mm / 8.3(W)x1.7(H)x8.1(D)"
Weight Approx. 1.1kg / 2.4lbs
Notes Specifications and appearance are subject to change without notice.
Frequency range and maximum deviation to comply with regulations of different countries.


MTG-100R Digital Portable Receiver Mipro MTG-100Ra Digital Portable Receiver
MTG-100R MTG-100Ra


Mipro AD-90S UHF 4-Channel Wideband Power Splitter Mipro AD-12 Passive Antenna Divider Combiner Mipro AT-70W Wideband Transmitting & Receiving Omni-directional Antenna Mipro AT-90W Wideband Transmitting & Receiving Log Antenna Mipro AD-808 UHF Four Channel Active Antenna Combiner
AD-90S
AD-12 AT-70W AT-90W AD-808
Mipro MU-53L Uni-Directional Lavalier Microphone Mipro MU-210 Uni-directional Cardioid Headworn Microphone Mipro MM-202 Gooseneck Microphone Mipro FB-71 Mipro FB-72
MU-53L MU-210 MM-202 FB-71 FB-72
Mipro MJ-53 Condenser Microphone Adaptor
MJ-53
