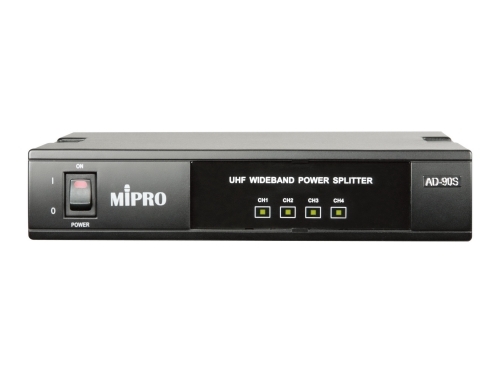

AD-90S is a UHF 4-channel power antenna splitter with a maximum output level of +26 dBm (0.4 W), assisting with one transmitter connecting to 4 transmitting antennas.
-
Primarily operates with 4 MI-808T in-ear monitoring transmitters or 4 MT-90 wireless interlinking transmitters to send signals through 4 channels with reliable signal transmission and larger signal coverage in multiple directions.
-
Note that AD-90S is not designed for receivers.
-
Each channel of AD-90S can be connected to an AD-90A UHF wideband power amplifier to increase signal output power and transmission range when the antenna is installed in complex terrain or a large building with many partitions.
| |
|
| Bandwidth |
UHF 470~960MHz |
| Full System Gain |
0~2dB |
| VSWR Input / Output |
≦1.5:1 |
| Maximum outputs |
4 |
| Input Signal Indicator Threshold |
+3dBm |
| Maximum RF Input Power |
+26dBm |
| Power Supply |
12~15V DC |
| Current Consumption |
Approx. 760mA |
| Input / Output Connectors |
TNC Female (1-input, 4-output) |
| Dimensions |
210(W)x44(H)x206(D)mm / 8.3(W)x1.7(H)x8.1(D)" |
| Weight |
1.1kg / 2.4lbs |
| Operating Environment |
-10~+60℃ |
| |
| |
|
|
|
|
 |
 |
 |
 |
 |
