MR-90a Professional Portable ENG Receiver

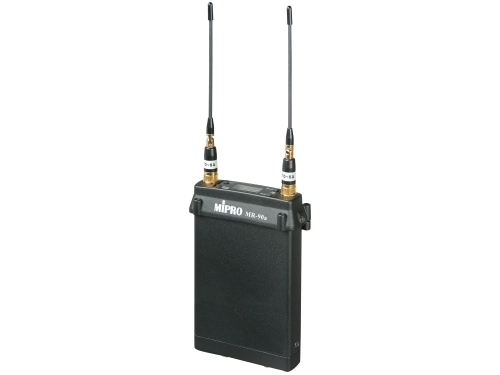

Mipro MR-90a Professional Portable ENG Receiver

Mipro MR-90a Professional Portable ENG Receiver







Spec Sheet

User Guide

application Application

Print

mail icon Send Mail




The MIPRO MR-90a is designed to install in the wireless receiver slots found on professional video cameras. With optional accessories, the MR-90a can be configured five different ways to fit all types of camcorders such as the Sony Betacam series or Ikegami and other compatible camcorders.

The MR-90a compact, miniature receiver utilises the UHF band, PLL synthesized technology and dual-antenna true diversity design, ensuring clear and stable signal reception with no signal dropout even in the most unpredictable operating environments. It has a wide frequency range where 100 selectable frequencies are pre-programmed. With the world's first ACT programming function of MIPRO's ACT Series, the receiver and transmitter can set up a clear working frequency rapidly and automatically.

A weather-resistant metal case provides professional strength and durability. A standard LCD panel gives a clear and accurate display of all digital operations and setup.

The MR90a can also be installed on an active PA speaker via MA-909 wireless mixer, MT-90A wireless interlinking transmitter or ACT transmitters to turn active speakers into a wireless system.


  • Key Features
  • Specifications
  • Transmitters
  • Accessories
  • Waterproof, compact, and ultra-thin rugged aluminum chassis construction.
  • Various interface socket modules can be easily detached and installed to work with different camcorders, active speakers and other audio equipment.
  • Detachable battery pack accessory needs only two AA-sized batteries to provide at least 10 continuous hours of operation, eliminating the need for external power.
  • True diversity technology for best reception quality.
  • 100 pre-programmed frequencies can be easily auto-scanned for a clear, interference-free frequency.
  • ACT™ syncs the transmitter and receiver frequency automatically.
  • LCD panel shows frequency, RF and AF signal strength, function, diversity, and battery strength.
  • Electronic power switch eliminates any noise during power up and power down.
  • Working voltage is 6~12V DC and the efficient power-saving design makes power consumption lower than 70mA.
  • Precision SMA antenna connectors with removable soft antennas.

Frequency Range UHF 620~934MHz
Bandwidth 24MHz
Oscillation Mode PLL Synthesized, Frequency Stability≦±0.005% (-10~+60℃)
Preset Channels 100 selectable channels
Channel Setup AutoScan
Receiving Mode Dual antenna true diversity
Receiving Sensitivity S/N>76dB at 6µV input
Frequency Response 80Hz~18kHz (low frequency filter characteristics)
Spurious Rejection >80dB
T.H.D. <0.15% (at 1kHz, deviation at 15kHz)
Squelch Level Adjustable range: 6dBuV~45dBuV at 5dB steps
Maximum S/N Ratio 107dBA
Maximum Output Level Balanced 2.2V rms open (THD=1%)
Display LCD
Power 6.5~12V DC
Current Consumption Approx. 70mA
Dimensions 83(W)×145(H)×35(D)mm / 3.3(W)x5.7(H)x1.4(D)"
Weight Approx. 220g / 7.7oz
Operating Environment -10~60℃
Notes Refer to actual product in the event of product description discrepancy.
