ACT-7H Handheld Transmitter

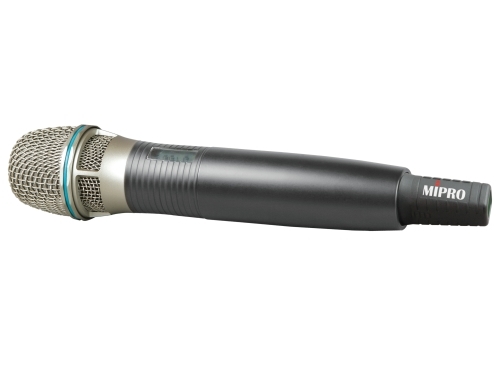

Mipro ACT-7H Wideband Handheld Transmitter

Mipro ACT-7H Wideband Handheld Transmitter







Spec Sheet

User Guide

Print

mail icon Send Mail



  • Key Features
  • Specifications
  • Receivers
  • Accessories
  • Rugged, ergonomically designed magnesium alloy housing.
  • Standard cardioid condenser microphone capsule provides high fidelity, wide frequency response, high dynamic range, rapid transient response, clarity and accurate sound reproduction.
  • ACT™ syncs the transmitter and receiver frequency automatically.
  • Extremely low handling noise.
  • Hardened steel grille resists wear and abuse.
  • Built-in foam reduces pop, breath and wind noise.
  • Pilotone squelch for interference-free operation.
  • Silent on/off switch.
  • 4-segment battery status meter.
  • LCD displays group, channel & error message code.
  • 20-hour battery life per 2 'AA' alkaline batteries.
  • 100m(330ft.) operating range.
  • 100% made in Taiwan.

Oscillation Mode PLL Synthesized
Frequency Range UHF 480~934MHz
Bandwidth 24MHz
Channel Set-Up ACT Sync
RF Output Power 10~30mW (country dependent)
Spurious Emission <-55dBc
Max. Input Level 140dB SPL
Battery 2 AA alkaline
Dimensions 50(Ø)×262(L)mm / 2.0(Ø)x10.3(L)"
Weight Approx. 260g / 9.2oz (excluding batteries)
Patents & Approvals Patented. Telecom and safety regulations approved.
Notes Refer to actual product in the event of product discrepancy.
Frequency range and maximum deviation comply with the regulations of different countries.

Mipro ACT-717 Single-Channel True Diversity Receiver Mipro ACT-727 Dual-Channel True Diversity Receiver Mipro ACT-747 Quad-Channel True Diversity Receiver Mipro MR-90a Professional Portable ENG Receiver
ACT-717 ACT-727 ACT-747 MR-90a


Mipro MU-89 Mipro MU-79 Condenser Capsule Mipro MU-39 Premium Dynamic Capsule Mipro MS-20 Mipro MD-20
MU-89 MU-79 MU-39 MS-20 MD-20
Mipro TC-18 Transmitter Shielding Storage Case Mipro RH-77M Multi-colored ID rings
TC-18 RH-77M
