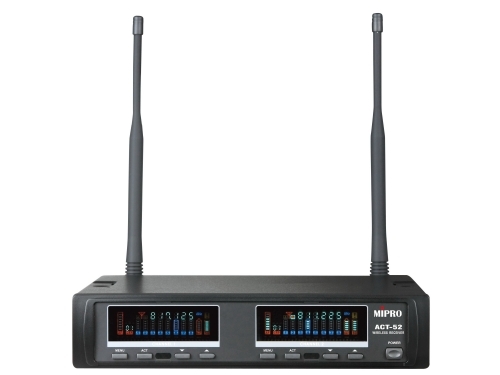

ACT-52 Dual-Channel Diversity Receiver


ACT-52 Dual-Channel Diversity Receiver

ACT-52 Dual-Channel Diversity Receiver ACT-52 Dual-Channel Diversity Receiver layout




  zoom in


Spec Sheet

User Guide

Print

mail icon Send Mail



  • Key Features
  • Specifications
  • Transmitters
  • Accessories
  • EIA standard 1/2U rack-mountable metal chassis for personal use.
  • All controls are intuitive and easily operating via electronic buttons, preventing accidental operation.
  • Full-color VFD (vacuum fluorescent display) displays all pertinent parameters on the same screen. Automatic dim for stand-by and lit during performance.
  • Each receiver presets 6 groups, and each group presets 8 interference-free channels. A total of 48 preset channels per band.
  • World’s first ACT™ function provides precise and rapid frequency sync to the transmitters.
  • Advanced diversity receiving circuit for the best elimination of signal dropout and the “PiloTone & NoiseLock” dual-squelch circuits prevent noise interference.
  • Three switchable output levels. Output level is accurately pre-adjusted to equal to the microphone capsule sensitivity and ensures optimal performance
  • Receiver provides bias for booster where MIPRO antenna systems can be added for extended receiving range and stability
  • Stable performance, easy installation and more non-interference channels ideal for stage and PA applications.
Channel Dual
Chassis EIA-Standard 19" 1/2U
Frequency Range UHF 480~934MHz
Antenna Rear Panel. Detachable.
Preset Frequency 48 selectable channels. 8 compatible channels in Group 1~6.
Receiving Mode Diversity
Oscillation Mode PLL Synthesized, Frequency Stability?±0.005% (-10~+60℃)
Sensitivity 10dBµV, at S/N>80dB
S/N Ratio >105dB(A)
T.H.D. <0.5% @ 1kHz
Frequency Response 50Hz~18kHz
Squelch "PiloTone & NoiseLock" dual-squelch circuit.
Audio Output Adjustment Output level accurately pre-adjusted to equal to the microphone capsule sensitivity.
Maximum Output Level 3-level Switch: +10dBV / 0dBV / -6dBV
Power Supply External 100-240V AC Switching Power Supply.
Dimensions 210(W)×44(H)×200(D)mm / 8.3(W)x1.7(H)x7.9(D)"
Weight Approx. 0.9kg / 2.0lbs
Notes Refer to actual product in the event of product discrepancy.
Frequency range and maximum deviation comply with the regulations of different countries.


Mipro ACT-50H Handheld Transmitter Mipro ACT-50T Bodypack Transmitter
ACT-50H ACT-50T


Mipro AD-707a UHF Wideband 4-Channel Antenna Divider Mipro AT-70 UHF Ground Plane Antenna Mipro AT-70W Wideband Transmitting & Receiving Omni-directional Antenna Mipro AT-90W Wideband Transmitting & Receiving Log Antenna Mipro AT-100 Wideband Circularly Polarized Antenna
AD-707a AT-70 AT-70W AT-90W AT-100
Mipro FB-71 Mipro FBC-71
FB-71 FBC-71
