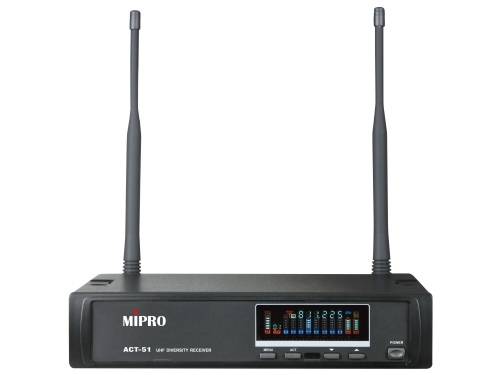

Mipro - ACT-51 Single-Channel Diversity Receiver

EIA standard 1/2U rack-mountable metal chassis for personal use.
All controls are intuitive and easily operating via electronic buttons, preventing accidental operation.
Full-color VFD (vacuum fluorescent display) displays all pertinent parameters on the same screen. Automatic dim for stand-by and lit during performance.
Each receiver presets 6 groups, and each group presets 8 interference-free channels. A total of 48 preset channels per band.
World’s first ACT™ function provides precise and rapid frequency sync to the transmitters.
Advanced diversity receiving circuit for the best elimination of signal dropout and the “PiloTone & NoiseLock” dual-squelch circuits prevent noise interference.
Three switchable output levels. Output level is accurately pre-adjusted to equal to the microphone capsule sensitivity and ensures optimal performance
Receiver provides bias for booster where MIPRO antenna systems can be added for extended receiving range and stability
Stable performance, easy installation and more non-interference channels ideal for stage and PA applications.

Channel	Single
Chassis	EIA standard 19" 1/2U
Frequency Range	UHF 480~934MHz
Antenna	Rear Panel. Detachable.
Preset Frequency	48 selectable channels. 8 compatible channels in Group 1~6.
Receiving Mode	Diversity
Oscillation Mode	PLL Synthesized, Frequency Stability?±0.005% (-10~+60℃)
Sensitivity	10dBµV, at S/N>80dB
S/N Ratio	>105dB(A)
T.H.D.	<0.5% @ 1kHz
Frequency Response	50Hz~18kHz
Squelch	"PiloTone & NoiseLock" dual-squelch circuit.
Audio Output Adjustment	Output level accurately pre-adjusted to equal to the microphone capsule sensitivity.
Maximum Output Level	3-level Switch: +10dBV / 0dBV / -6dBV
Power Supply	External 100-240V AC Switching Power Supply.
Dimensions	210(W)×44(H)×200(D)mm / 8.3(W)x1.7(H)x7.9(D)"
Weight	Approx. 0.7kg / 1.5lbs
Notes	Refer to actual product in the event of product discrepancy. Frequency range and maximum deviation comply with the regulations of different countries.
