ACT-311 Single-Channel Diversity Receiver

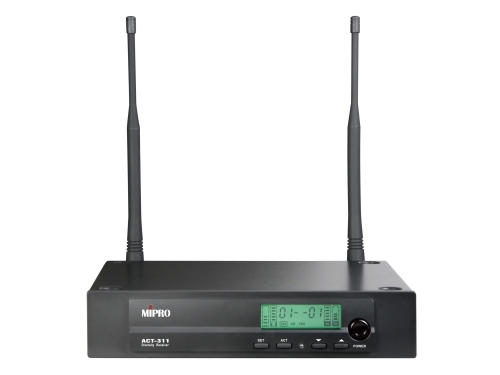

Mipro ACT-311 Single-Channel Diversity Receiver

Mipro ACT-311 Single-Channel Diversity Receiver Mipro ACT-311 Single-Channel Diversity Receiver layout




  zoom in


Spec Sheet

User Guide

Print

mail icon Send Mail




The innovative ACT 3 Series wireless microphone systems are a culmination of years of extensive design and manufacturing experience. No wiring and adjustment required as PCB, LCD and front panel are integrated. Featuring 1/2U receivers of single-channel ACT311 & dual-channel ACT-312 and 1U receivers of single-channel ACT300.

EIA standard 19” rack-mountable metal chassis is used instead of cheap plastics. Featuring backlit LCD instead LED display for ease of use and professional appearance. PLL-synthesized technology for RF stability and matched with rugged ACT-30H & ACT-30T transmitters.

Design and made in Taiwan. Advanced features and functions make it ideal for professional applications with affordable prices.


  • Key Features
  • Specifications
  • Transmitters
  • Accessories
  • EIA standard 1/2U metal receiver.
  • Receiver provides bias for booster where MIPRO antenna systems can be added for extended receiving range and stability.
  • Backlit LCD displays group, channel, frequency, RF level, antenna selection, AF level, battery level indicator, interference warning indicator, and panel lock indicator.
  • A lit green light indicates a working mode when receiver detects an incoming signal or buttons touched. Light dims automatically when receiver is idle for about 10 seconds.
  • Balanced XLR / unbalanced 1/4 " audio output jack, output level switch and DC input are on the rear panel. One mixed-output switch is available for dual-channel receivers.
  • High efficiency and low spurious PLL circuitry with Auto Scan functioin. Each receiver is presets with 11 groups, Groups 1~6, 7~10 have 8 &16 compatible channels respectively. Up to 8 channels in group 11 can be saved and recalled within 961 user-defined frequencies. A total of 112 preset channels per band.
  • World’s first ACT™ function provides precise and rapid frequency sync to the transmitters.
  • Advanced diversity technology for optimum reception range and reduces signal dropouts and the “PiloTone &
  • NoiseLock” dual-squelch circuits prevent noise interference.
  • Adjustable ‘SQ’ for higher sensitivity to increase receiving distance and lower sensitivity to reduce interference.
  • Industry’s only RF interference warning indicator for ideal SQ level adjustment.
  • DC input socket accepts 12~15V power supply.
  • Matching ACT-30H handheld and ACT-30T bodypack transmitters.

Channel Single
Chassis EIA-Standard 19" 1/2U
Receiving Mode Diversity
Frequency Range UHF 480~934MHz
Antenna Rear Panel. Detachable.
Preset Channels 112 preset channels.
Group 1-6: 8 compatible channels in each group.
Group 7-10: 16 compatible channels in each group.
Group 11: Up to 8 channels can be saved & recalled. 961 user-defined frequencies in group 11.
Oscillation Mode PLL Synthesized, Frequency Stability?±0.005% (-10~+60℃)
Sensitivity 10dBµV, at S/N>80dB
S/N Ratio >106dB(A)
T.H.D. <0.5% @ 1kHz
Frequency Response 50Hz~18kHz, with high pass filter.
Squelch "PiloTone & NoiseLock" dual-squelch circuit.
Audio Output Adjustment Output level accurately pre-adjusted to equal to the microphone capsule sensitivity.
Maximum Output Level 2-level Switch: Line & Mic
Power Supply External AC Adapter, 12~15V DC, 1A
Dimensions 210(W)×44(H)×180(D)mm / 8.3(W)x1.7(H)x7.1(D)"
Weight Approx. 0.8kg / 1.8lbs
Notes Refer to actual product in the event of product discrepancy.
Frequency range and maximum deviation comply with the regulations of different countries.


Mipro ACT-30H Handheld Transmitter Mipro ACT-30T Bodypack Transmitter
ACT-30H ACT-30T


Mipro AD-707a UHF Wideband 4-Channel Antenna Divider Mipro AT-70 UHF Ground Plane Antenna Mipro AT-70W Wideband Transmitting & Receiving Omni-directional Antenna Mipro AT-90W Wideband Transmitting & Receiving Log Antenna Mipro AT-100 Wideband Circularly Polarized Antenna
AD-707a AT-70 AT-70W AT-90W AT-100
Mipro FB-71 Mipro FBC-71
FB-71 FBC-71
