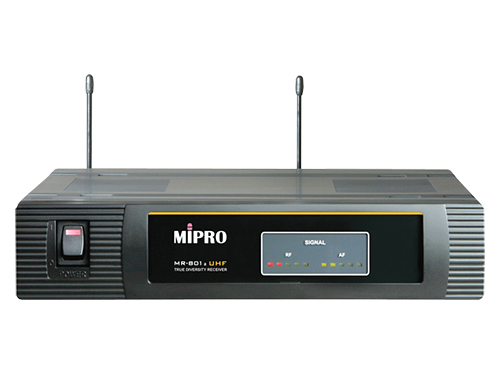

Mipro - MR-801a Single-Channel True Diversity Receiver

EIA standard 1/2U rack-mountable receiver.
Advanced true diversity technology for best reception quality.
Enhanced RF filter and circuitry for improved anti-interference characteristics and increased compatible systems.
Dual-squelch "PiloTone & NoiseLock" circuits minimize interference.
Industry’s only interference indicator detects RF interference and a sensitivity control for management.
Receiver output level is precisely pre-adjusted to match sensitivity level of the microphone capsule, eliminating the need for any further volume adjustment.
5-level RF and audio indicators.
Balanced XLR and unbalanced 1/4" audio outputs.
100m(330ft.) operating range.
100% made in Taiwan ensures product quality and value.


Main Frame Size	EIA standard 1/2-rack unit
Oscillation Mode	Phased-lock Loop (PLL) technology
Stability	±0.005% (-10~50â„ƒ)
Carrier Frequency Range	UHF 780~930MHz
Receiving Mode	True-Diversity
Sensitivity	S/N>70dB@10dBμV input
S/N Ratio	>105dB(A)
T.H.D.	<0.5% @ 1KHz
Frequency Response	60Hz~18KHz, equipped high-pass filter circuitry
Maximum Output Level	Mic-level: -14dBV/47Ω, Line-level: -4dBV/5KΩ
Squelch	"NoiseLock" squelch circuit
Power Supply	External AC Power Supply, 0.5A, 12~15V DC
Dimensions	210(W)×44(H)×170(D)mm / 8.3(W)x1.7(H)x6.7(D)"
Weight	0.65kg / 1.4lbs
Notes	Specifications on carrier frequency range and maximum deviation vary to comply with regulations of different countries.
