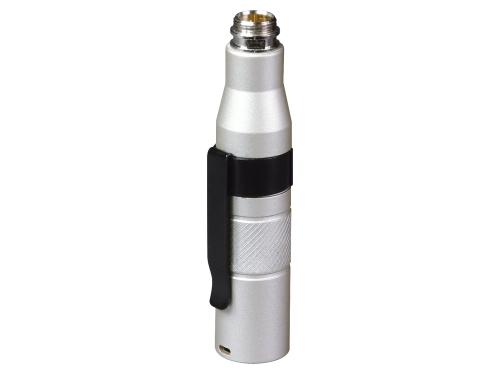

Mipro - MJ-53 Condenser Microphone Adaptor

MJ-53 Condenser Microphone Adaptor



	Print

	Send Mail

Tweet

MJ-53 enables condenser microphone with mini XLR plug to connect directly to the mixer input which has XLR jack and provides 12~48V DC phantom power. High output impedance of a condenser microphone will be transformed to low output impedance at about 200 Ohms.

Key Features
Specifications
Related

Balanced OP amplifier for wide frequency response.
Suitable for any mixer input due to constant output impedance.
High S/N ratio prevents noise interference at long distance transmission.
High dynamic range ensures accurate output level.
No overload distortion under high SPL input.
Mini XLR connector for input and XLR connector for output. Belt clip for easy wearing.
Rugged metal housing ensures a long operating life.


Frequency Response	80Hz (-3dB)~20kHz (0dB) @ 94dB SPL
Balanced Output Impedance	200Ohms @ 1V/1kHz
Max. Output Voltage	2.52V (1.0% THD 1kHz)
Dynamic Range	120dB (A-weighting)
Power Supply	Phantom Power: 12~48V DC Current Drain: 2.0mA
Dimensions	19(Ø)×902(L)mm / 0.7(Ø)×35.5(L)"
Weight	72g / 2.5oz
