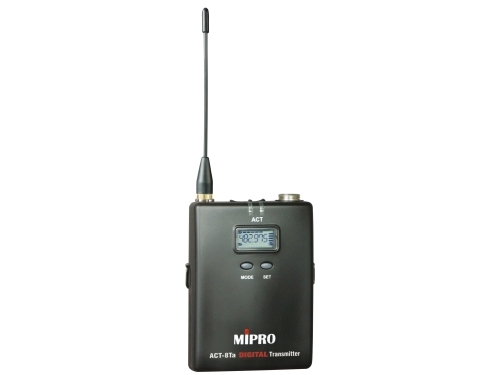

- Ultra slim bodypack transmitter with sturdy magnesium alloy housing.
- Detachable antenna, mini power switch and XLR input connector are located on the top of transmitter.
- Backlit LCD displays working group, channel, frequency, battery status, AF input gain and encryption status.
- MODE and SET buttons for adjust sensitivity, limiter, low-cut and RF output power.
- Stable PLL circuit. Synchronized with the receiver’s frequency by MIPRO’s patented ACT™ function automatically.
- Selection of polarization for audio input to match different capsules of different polarizations.
- Detachable lithium polymer rechargeable battery pack can be recharged alone or together with transmitter.
- Optional 3 pin LEMO connector.
- Spring belt clip allows wearing transmitter upside down.
| |
|
| Frequency Range |
UHF 482~602 MHz（US & EU）
UHF 638~758 MHz（EU） |
| Antenna |
Detachable. |
| RF Power Output |
10mW/50mW (switchable) |
| Spurious Emission |
≦-60dBc |
| Oscillation Mode |
PLL Synthesized, Frequency Stability≦±0.005% (-10~+60℃) |
| Modulation Type |
New Digital Modulation |
| Audio Compression |
2nd DSP Inertial Coding |
| Battery |
1100mA/h Rechargeable Lithium battery pack |
| Battery Hours |
>12hours (Low Power) |
| Dimensions |
60(W)×84(H)×24(D)mm / 2.4(W)×3.3(H)×0.9(D)" |
| Weight |
Approx. 135g / 4.7oz, rechargeable battery included |
| Notes |
Refer to actual product in the event of product discrepancy.
Frequency range and maximum deviation comply with the regulations of different countries. |
| |
| |
|
|
|
|
 |
 |
 |
 |
 |
| ACT-82a |
MU-53L |
MU-55L |
MU-13 |
MU-210 |
 |
 |
 |
|
|
| MU-23 |
MU-53HN |
MU-55HN |
|
|
| |
|
|
|
|
|
|
