ACT-8Ha Wideband Digital Handheld Transmitter

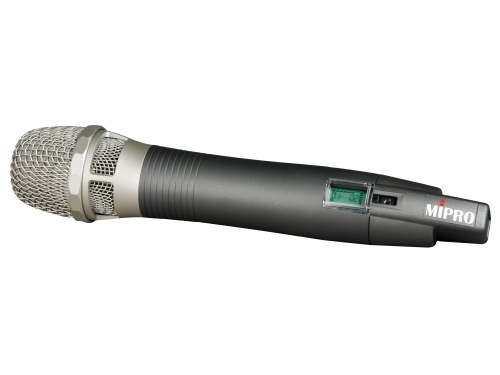

Mipro ACT-8Ha Wideband Digital Handheld Transmitter

Mipro ACT-8Ha Wideband Digital Handheld Transmitter







Spec Sheet

User Guide

Print

mail icon Send Mail



  • Key Features
  • Specifications
  • Receivers
  • Accessories
  • Innovatively designed housing in MIPRO’s aesthetics and ergonomic style.
  • Perfect combination of audio and wireless transmission technology creates perfect sound quality.
  • MIPRO proprietary multi-layer metal grille protects the capsule against impact, rolling and pop noise. The grille is able to be detached easily for cleaning and hygiene practices.
  • Interchangeable capsule module with premium condenser or dynamic options for easy and fast changeovers.
  • True condenser capsule exhibits high fidelity, wide dynamic range, fast transient responses, good feedback rejection, accurate sound image characteristics, transparent sound quality, and withstands maximum SPL.
  • Optional MIPRO proprietary dynamic capsule module with low touch-noise and knock-noise.
  • LCD displays working group, channel, battery status, encryption status and error codes.
  • The bottom housing, where high-efficiency antenna is integrated inside, embedded with power switch and setup button for programmed sensitivity, limiter, low cut and RF output power.
  • Patented high performance lithium polymer rechargeable battery pack, easily removable for maintenance, is environmentally friendly and saves expense of replacing batteries.
  • Optional MP-88 battery charger case provides up to 8 transmitters and 8 rechargeable battery packs can be charged concurrently.
  • Switchable High / Low power options. An interference-free working channel can be synchronized automatically and quickly without any error by MIPRO’s patented ACT™ function.

Frequency Range UHF 482~602 MHz(US & EU)
UHF 638~758 MHz(EU)
Antenna Built-in
RF Power Output 10mW/50mW (switchable)
Spurious Emission ≦-60dBc
Oscillation Mode PLL Synthesized, Frequency Stability≦±0.005% (-10~+60℃)
Modulation Type New Digital Modulation
Audio Compression 2nd DSP Inertial Coding
Battery 1100mA/h Rechargeable Lithium battery pack
Battery Hours >12hours (Low Power)
Dimensions 50(Ø)×248(L)mm / 2(Ø)×9.8(L)"
Weight Approx. 315g / 11.1ozl
Notes Refer to actual product in the event of product discrepancy.
Frequency range and maximum deviation comply with the regulations of different countries.


Mipro ACT-82a Wideband Dual-Channel Digital Receiver
ACT-82a


Mipro MU-89 True Condenser Capsule Mipro MU-79 Condenser Capsule Mipro MU-59 Professional Dynamic Capsule Mipro MS-20 Mipro MD-20
MU-89 MU-79 MU-59 MS-20 MD-20
Mipro MP-8 Battery Charger Mipro MP-88 8-Slot Battery Charger Case Mipro TC-18 Transmitter Shielding Storage Case Mipro RH-88 Multi-colored ID Caps
MP-8 MP-88 TC-18 RH-88
