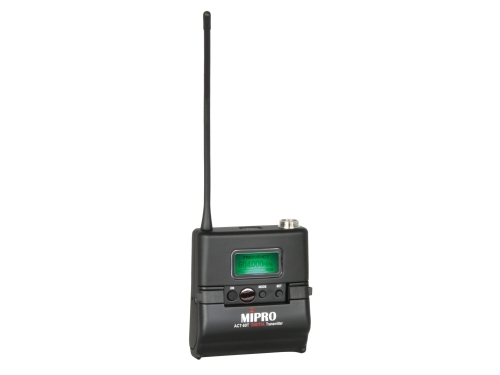

ACT-80T Wideband Digital Miniature Bodypack Transmitter


Mipro ACT-80T Wideband Digital Miniature Bodypack Transmitter

Mipro ACT-80T Wideband Digital Miniature Bodypack Transmitter







Spec Sheet

User Guide

Print

mail icon Send Mail



  • Key Features
  • Specifications
  • Receivers
  • Accessories
  • Industry’s smallest and lightest digital bodypack transmitter with extremely rugged magnesium alloy housing.
  • Equipped with antenna, mini-XLR input socket, mute button and remote mute control input.
  • Backlit LCD displays several operational messages.
  • Innovatively designed battery cover allows easy access to operate buttons and prevents accidental operation.
  • Mute button with remote-control jack for easy activation of mute function.
  • Stable PLL circuit. Synchronized with the receiver’s frequency by MIPRO’s patented ACT™ function automatically.
  • Selection of polarization for audio input to match different capsules of different polarizations.
  • Six selectable gain settings.
  • Mini-XLR input with secure screw lock connector for lavalier / headworn mics and guitar.
  • 2 AA or rechargeable batteries provide long operation time up to 12 hours.
  • Adjustable belt clip allows wearing transmitter in up or down position

Housing Magnesium alloy
Frequency Range 5E: 480~544MHz (US & EU)
5F: 540~604MHz (US & EU)
6E: 636~700MHz (EU)
6F: 696~760MHz (EU)
RF Power Output 10mW/50mW (switchable)
Spurious Emission ≦-60dBc
Oscillation Mode PLL Synthesized, Frequency Stability≦±0.005% (-10~+60℃)
Display Backlit LCD displays frequency band, group channel, AF gain, limiter, low cut, phase, output power, mute, battery status, encryption status & error codes.
Modulation Type New Digital Modulation
Audio Compression DSP Inertial Coding
Gain Setting +18dB, +12dB, +6dB, 0dB, -6dB, -12dB (6 settings). 0dB= microphone sensitivity
Mute Connector Optional MJ-70 remote mute switch
Battery 2 AA alkaline
Battery Hours Up to 12 hours (Low Power)
Dimensions 63(W)×70(H)×25(D)mm / 2.5(W)×2.7(H)×1.0(D)"
Weight Approx. 78g / 2.6oz, excluding batteries
Notes Refer to actual product in the event of product discrepancy.
Frequency range and maximum deviation comply with the regulations of different countries.


Mipro ACT-818 Mipro ACT-828 Mipro MU-53L Uni-Directional Lavalier Microphone Mipro MU-55L Omni-Directional Lavalier Microphone Mipro MU-13 Single-sided Earworn Microphone
ACT-818 ACT-828 MU-53L MU-55L MU-13
Mipro MU-210 Uni-directional Cardioid Headworn Microphone Mipro MU-23 Omni-directional Headworn Microphone Mipro MU-53HN Uni-Directional Cardioid Headworn Microphone Mipro MU-55HN Omni-Directional Headworn Microphone
MU-210 MU-23 MU-53HN MU-55HN


Mipro MJ-70 Remote Mute Switch Mipro MU-40G Instrument Cable Mipro TC-18 Mipro ASP-30 Aerobics Bodypack Pouch
MJ-70 MU-40G TC-18 ASP-30
