ACT-32T Bodypack Transmitter

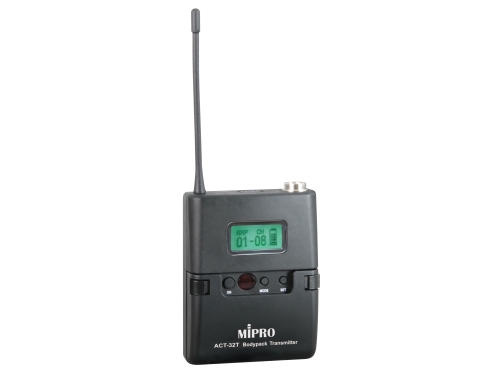

Mipro ACT-32T Bodypack Transmitter

Mipro ACT-32T Bodypack Transmitter







User Guide

Print

mail icon Send Mail



  • Key Features
  • Specifications
  • Receivers
  • Accessories
  •  Lightweight, compact size with sturdy plastic housing.
  • On the top features mute switch, mini-XLR connector and antenna.
  • Backlit LCD displays various parameters and status.
  • Innovatively designed battery cover allows easy access to operate buttons and prevents accidental operation.
  • Mute button with remote-control jack for easy activation of mute function.
  • Stable PLL circuits. Automatically synchronized with the receiver’s frequency by MIPRO’s patented ACT™ function.
  • Can directly match to high-low input impedance for microphone or guitar without switching.
  • Mini-XLR input with secure screw lock connector for lavaliere / headworn mics and guitar.
  • Adjustable belt clip allows wearing transmitter in up or down position.
  • High-efficiency circuitry design provides 12~14 hours of operation from 2 AA batteries (depending on the battery quality).
 Frequency Range  UHF 480~934MHz
 Bandwidth  24 MHz
 Oscillation Mode  PLL Synthesized
 Channel Set-Up  ACT Sync
 RF Output Power  10mW / 30mW (switchable)
 Deviation < ± 40 kHz
 Spurious Emission  < ±40kHz
  LCD Display  Group, Channel, Frequency, AF gain, Frequency band, RF power, Mute mode, Lock status, Battery status and error codes
 Max. Input Level  0 dBV
 Mute Connector  Optional MJ-70 remote mute switch
 Battery Type

 2 AA alkaline

Operating Time  Min. 12 hours
Current Consumption High Power: approx. 161 mA ; Low Power: approx. 120 mA
Dimensions  63(W)×82(H)x22(D)mm / 2.5(W)x3.2(H)x0.9(D)"
Net Weight  Approx. 83g / 2.9oz (excluding batteries)


 Mipro MU-53L Uni-Directional Lavalier Microphone  Mipro MU-55L Omni-Directional Lavalier Microphone  Mipro MU-13 Single-sided Earworn Microphone  Mipro MU-210 Uni-directional Cardioid Headworn Microphone  Mipro MU-23 Omni-directional Headworn Microphone
 MU-53L  MU-55L  MU-13  MU-210 MU-23
 Mipro MU-53HN Uni-Directional Cardioid Headworn Microphone  Mipro MU-55HN Omni-Directional Headworn Microphone
 MU-53HN  MU-55HN


 Mipro MJ-70  Mipro MU-40G Mipro TC-18  Mipro ASP-30
 MJ-70  MU-40G TC-18  ASP-30
